360° Rotating Gripper / Large Block Grabber / Telescopic Auger Drill / Hydraulic Hammer / Brick Grabber / Diesel Engine Hydraulic Power Station



360° ROTARY GRIPPER：

Hydraulic crane boom head equipped with hydraulic grab wood, can realize the wood, sugarcane, stones, materials handling and loading and unloading and garbage grab, scrap metaltreatment and other special operations, 360° rotary grab wood through the pin shaft andboom boom head connection, oil circuit using quick plug connection, one person can easilyachieve installation or disassembly in a short time, easy to work, high strength fixture, longservice life, is you save time, labor, make money good tool.

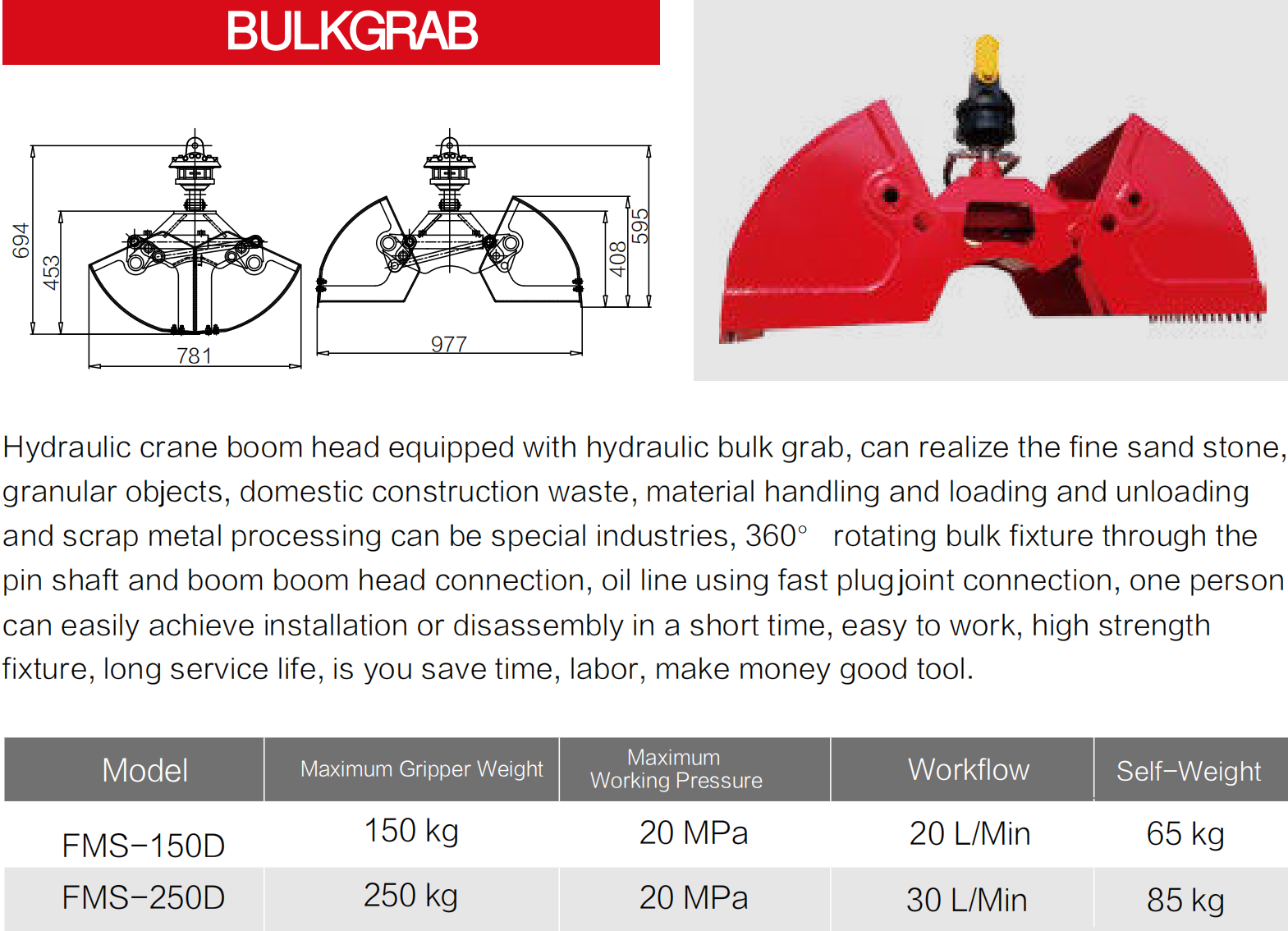

BULKGRAB：

Hydraulic crane boom head equipped with hydraulic bulk grab, can realize the fine sand stonegranular objects, domestic construction waste, material handling and loading and unloadingand scrap metal processing can be special industries, 360° rotating bulk fixture through thepin shaft and boom boom head connection, oil line using fast plugjoint connection, one personcan easily achieve installation or disassembly in a short time, easy to work, high strengthfixture, long service life, is you save time, labor, make money good tool.

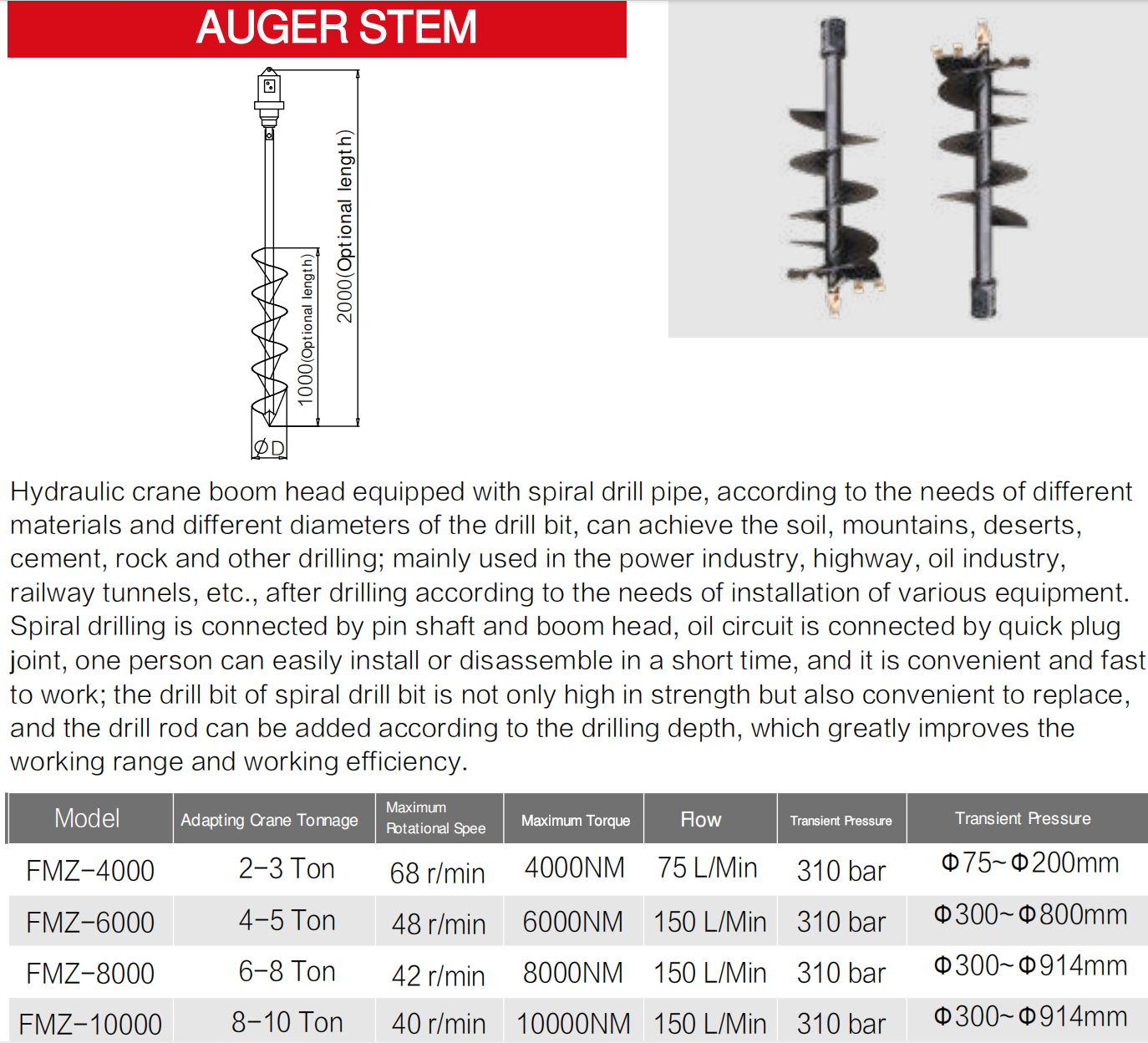

AUGER STEM：

Hydraulic crane boom head equipped with spiral dril pipe, according to the needs of differentmaterials and different diameters of the drill bit, can achieve the soil., mountains, deserts.cement, rock and other drilling; mainly used in the power industry, highway, oil industry.railway tunnels, etc., after driling according to the needs of installation of various equipment.Spiral driling is connected by pin shaft and boom head, oil circuit is connected by quick plugjoint, one person can easily install or disassemble in a short time, and it is convenient and fastto work; the drill bit of spiral drill bit is not only high in strength but also convenient to replace.and the drill rod can be added according to the drilling depth, which greatly improves theworking range and working efficiency.

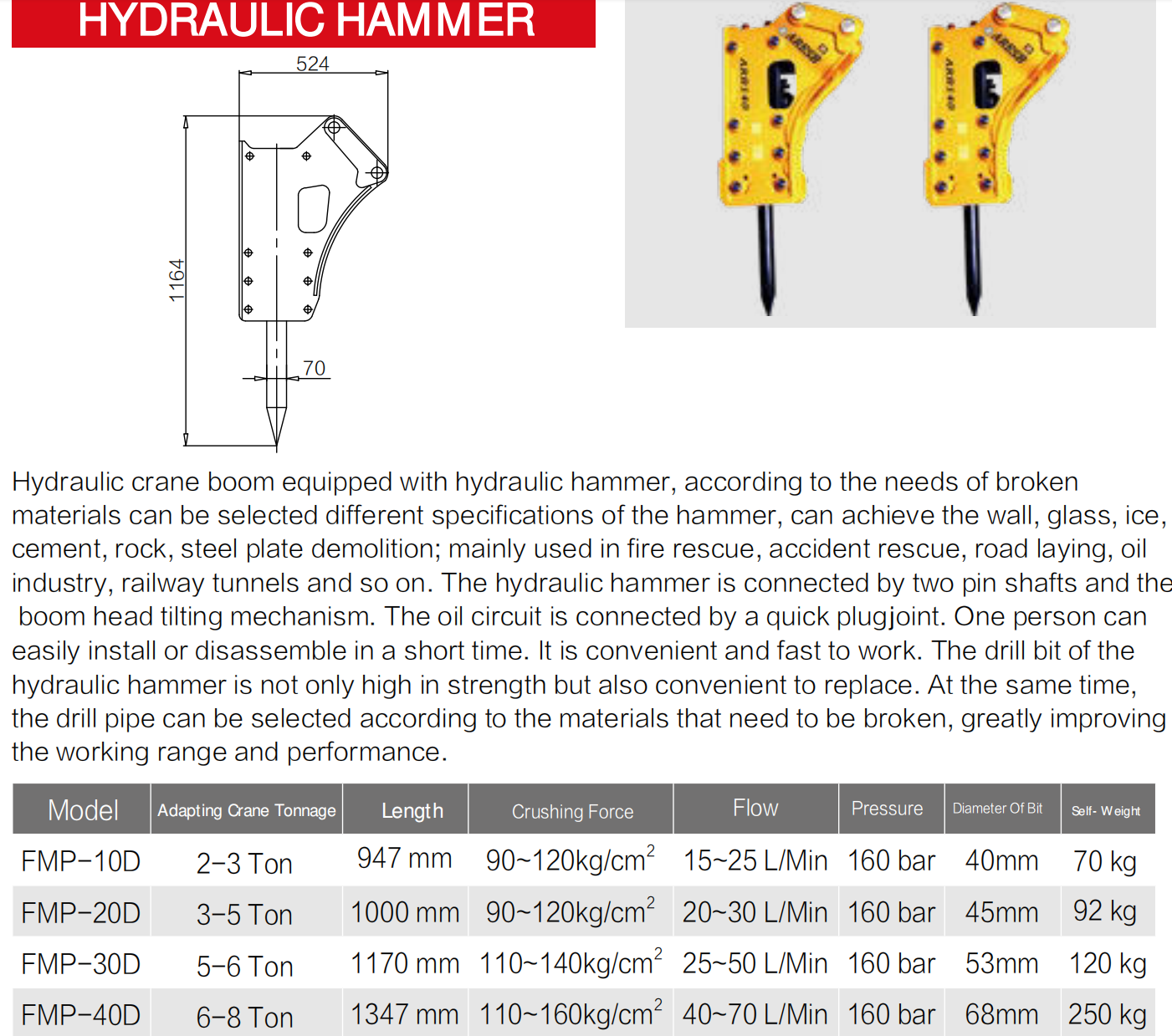

HYDRAULIC HAMMER：

Hydraulic crane boom equipped with hydraulic hammer, according to the needs of brokenmaterials can be selected different specifications of the hammer, can achieve the wall, glass, ice.cement, rock, steel plate demolition; mainly used in fire rescue, accident rescue, road laying, oilindustry, railway tunnels and so on. The hydraulic hammer is connected by two pin shafts and theboom head tilting mechanism. The oil circuit is connected by a quick plugjoint. One person caneasily install or disassemble in a short time. lt is convenient and fast to work, The drill bit of thehydraulic hammer is not only high in strength but also convenient to replace. At the same time,the drill pipe can be selected according to the materials that need to be broken, greatly improvingthe working range and performance.



BRICK GRAB：

The hydraulic crane boom is equipped with brick fixture, according to the different specificationsof bricks produced by customers, different size fixtures can be selected, which can realize thetransfer of concrete aerated bricks, red bricks, curb stones, highway baffles, building bricks. etc: the brick fixture is connected with the boom head or wire rope hook through the pin shaft.without oil pipe connection, and the clamping force is automatically adusted by the weight of theclamped object. The operation is convenient and fast, without manual assistance, and it can behoisted or unloaded automaticallv, it is convenient and fast to work: because the productionprocess, size and hardness of the brick factory are different, the brick fixture can be customizecaccording to each customer, so that the damage rate in the handling process is reduced, andthe work efficiency and profit are greatly improved.



DIESEL ENGINE HYDRAULIC POWER STATION：

Diesel engine hydraulic power station is a kind of equipment which provides power for hydraulic crane. ltmainly consists of diesel engine, starting instrument panel, coupling, oil pump, pump frame, hydraulic oil tankbase, dust cover, starting battery, radiator, manual pump and hydraulic pipeline joint. M ainly used inrailway engineering, tunnel engineering, ships, docks and other places to provide power for hydraulic cranes
