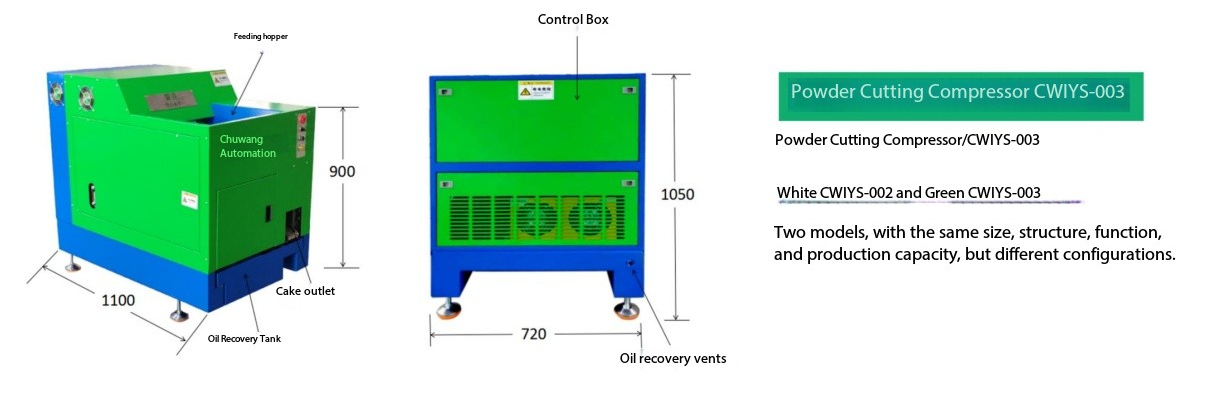

External Dimensions: W720*D1100*H1050mm
Hopper Loading Dimensions: 520*450mm
Hopper Inlet Height: 900mm
Hopper Capacity: 50L
Oil Receiver Capacity: 18L
Chip Pressing Method: Screw
Chip Compression Method: Oil Cylinder
Compressed Dimensions: 70*10~50mm
Compression Surface Pressure: 1080kgf/cm
Maximum Pressurizing Force: 42 tons

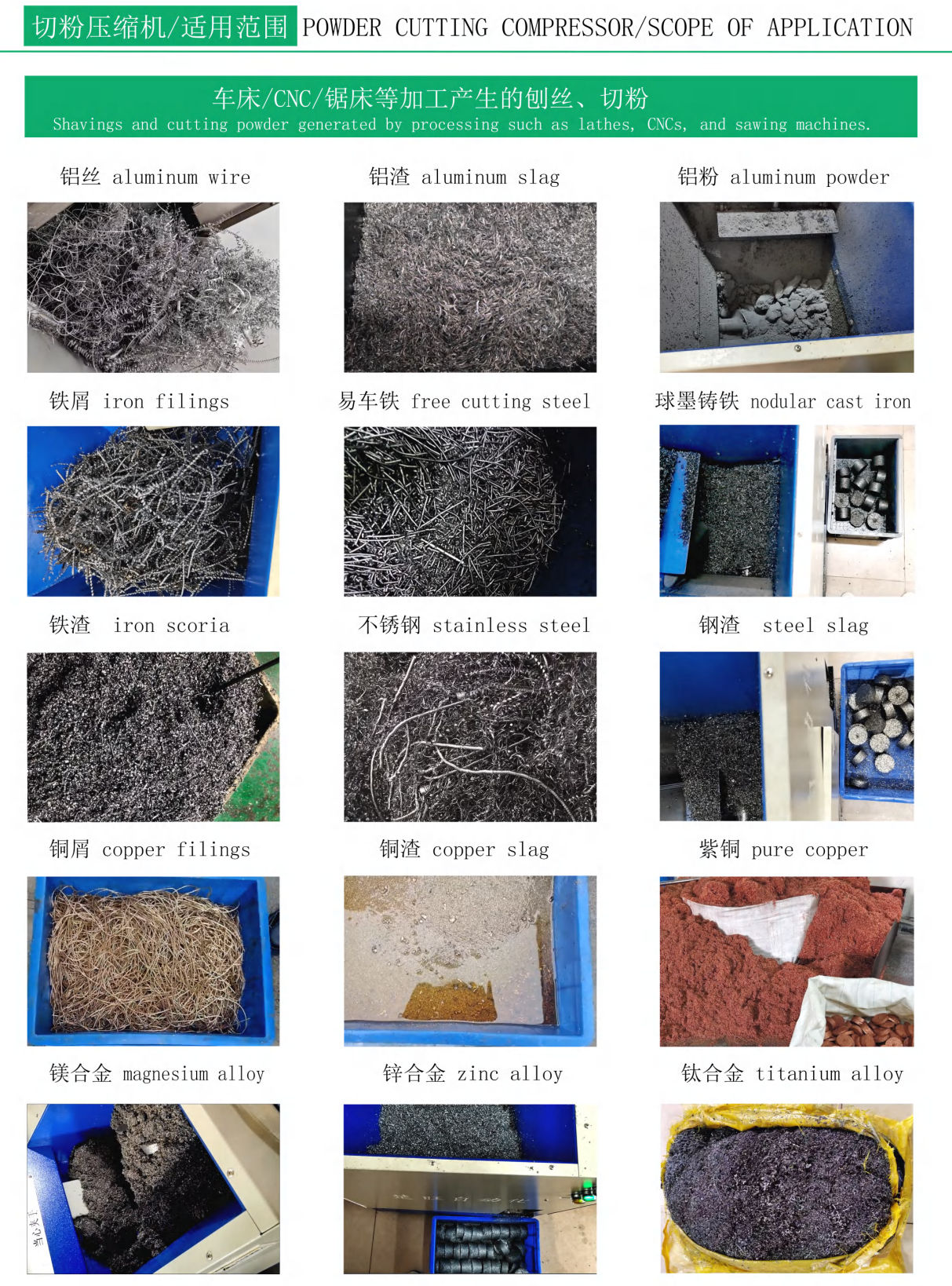

Applicable Materials: Aluminum/Stainless Steel/Iron/Copper/Magnesium Alloy/etc.
Applicable Chip Types: Lathe/CNC/Saw Machine

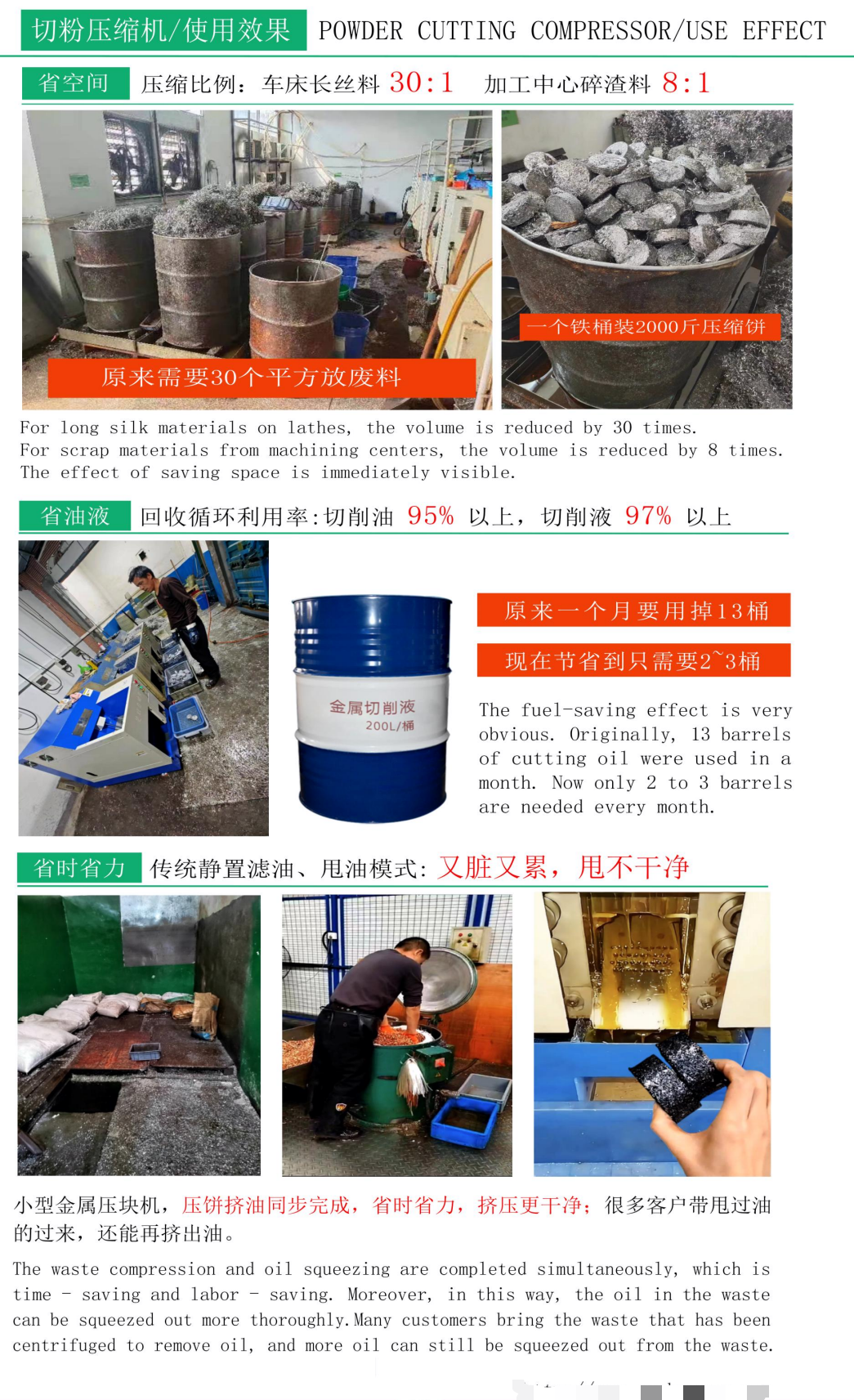

Chip Compression Volume Ratio: Lathe Long Coiled Material 30:1, CNC/Saw Machine Chips 8:1
Cycle Time: Approximately 24 seconds (excluding the time for feeding into the compression section)
Weight: 600kg
Power Supply: 3-phase 380V
Power: 3KW
