Introduction to Molded Composite (Unsaturated Resin) Cable Tray

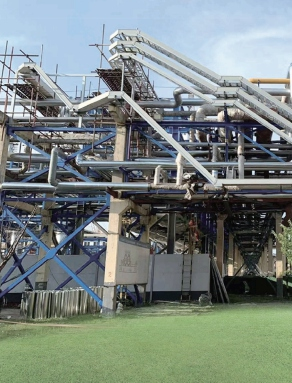

In industrial enterprises with flammable, explosive, and corrosive environments, the cable tray, as the carrier of power transmission cables, its anti-corrosion performance and mechanical properties are the basic guarantee for the product's service life to be synchronized with the production equipment. Fire resistance is also a very important requirement, that is, to ensure normal power transmission within a certain period of time (30min) in the event of an accident, so that relevant equipment can be quickly shut down or started to avoid excessive losses.

Performance and Characteristics

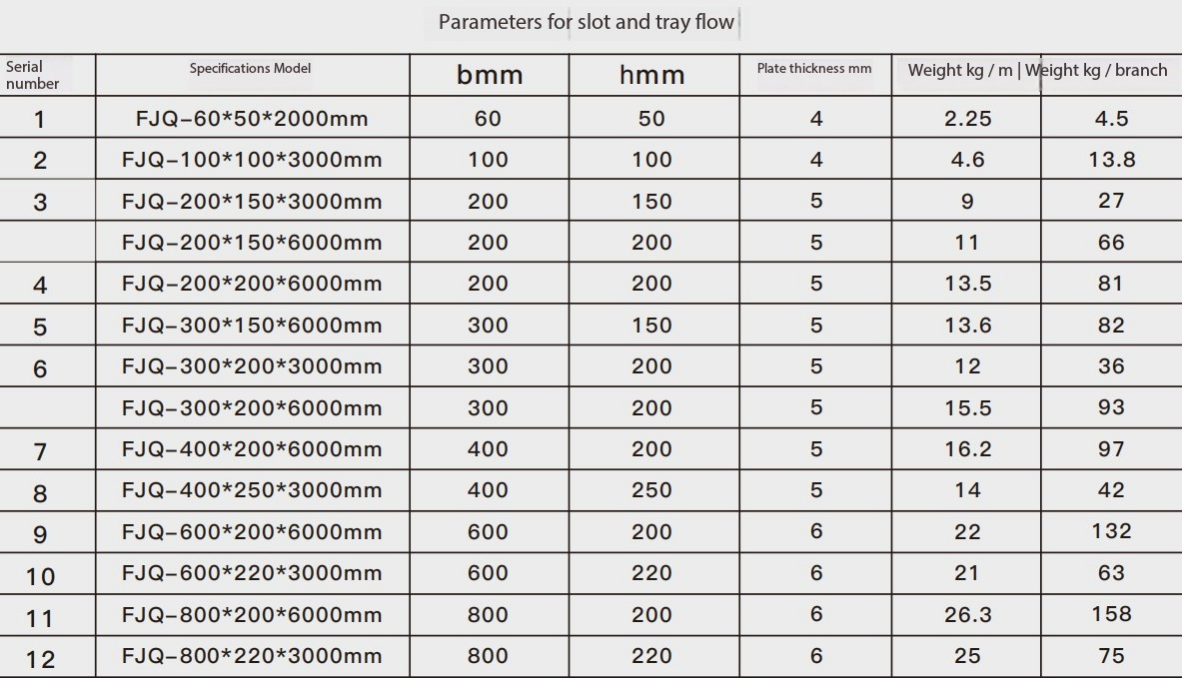

Structural form: trough type, ladder type.

Protection grade: IP44 (trough type fire protection requirements shall comply with IP44).

Fire performance: flame retardant grade B1, difficult to ignite within 30mmin when exposed to open flame, no penetration holes, no fission, no hot dripping.

Service environment condition grade: outdoor anti-strong corrosion grade 4C4.

Mechanical properties: rigidity and toughness are equivalent to metal materials, no deformation, no expansion, no delamination, no pulverization.

Operating temperature range: -40℃-220℃.

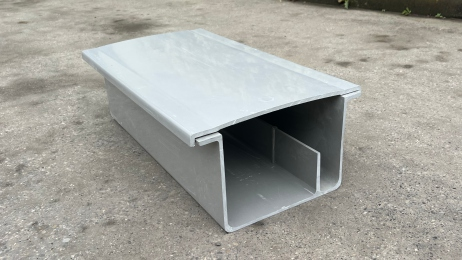

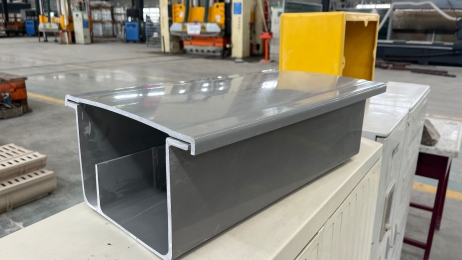

The installation of the tray bottom and cover is snap-fastened, which is convenient for installation and separation and reliable for fastening.

Color: optional, default color 7035 gray.

Service life: >30 years, maintenance-free during use.

Production Method

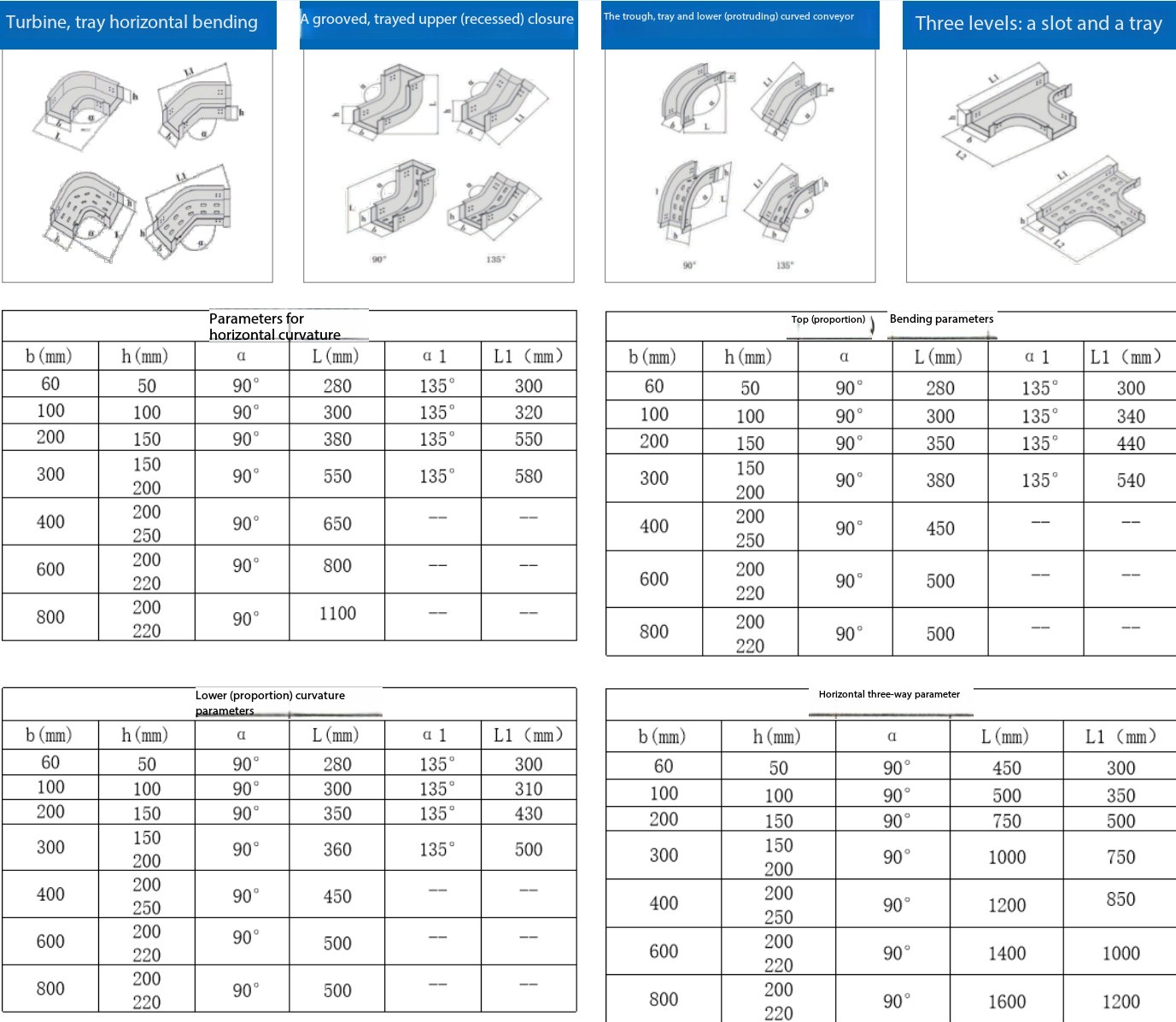

Each specification of straight trough bottom, trough cover, various types of elbows and connectors has a single mold respectively. They are all molded by a 2000T molding machine at a high temperature of 150℃, with the required fireproof, anti-corrosion, reinforcing, bonding and other components formed by one-time thermosetting molding.
