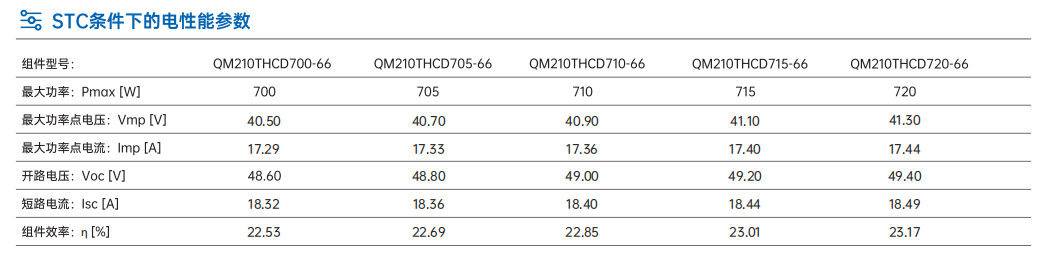

Output Power
700-720W
15-year Product Warranty
30-year Power Warranty
Rectangular Cell Technology
Ultra-high Efficiency
Bifacial Power Generation
Ultra-low Degradation
Stable and Reliable
Ultra-long Warranty
Applicable for:
Residential Roofs
Commercial and Industrial Roofs
Ground-mounted Power Stations
Mechanical Parameters:
Number of Half-cut Cells: 132 (66x2)
Module Dimensions: 2384x1303x33mm
Weight: 37.9kg
Front Glass: 2.0mm High-transmittance Steel
Back Sheet: 2.0mm Heat-strengthened Glass
Frame: Anodized Aluminum Alloy
Junction Box: IP68 Rating / 3 Diodes
Cable:
4mm’/+400mm-200mm (Custom Cable Length Available)
Module Fire Rating: C
Safety Protection Class: Class ll
Quantity per Pallet: 33 pieces/pallet
Loading Quantity: 40ft High Cube: 594 pieces, 13m Flatbed Truck: 594 pieces, 17.5m Flatbed Truck: 726 pieces
Temperature Parameters:
Voltage Temperature Coefficient: -0.28%/°C
Power Temperature Coefficient: -0.29%/°C
Current Temperature Coefficient: 0.04%/°C
Nominal Operating Temperature: 45±2℃℃
Maximum Rated Parameters:
Operating Temperature Range: -40°C~+85°C
Maximum System Voltage: DC 1500V
Maximum Overprotection Current: 30A
Power Tolerance: 0~+5W
